It has good straightness, small diameter tolerance, softness, and is used as reinforcement and tensioning material for optical cables, electrical cables and overhead ground wires.
| Quantity: | |
|---|---|
Guy strands
1-Use:Used as reinforcement and tensioning material for fiber optic cables, electrical cables and overhead ground wires
2-Features:Good linearity; small diameter tolerance, soft; according to GB, can also be produced according to customer's technical requirements
3-Surface condition:galvanized

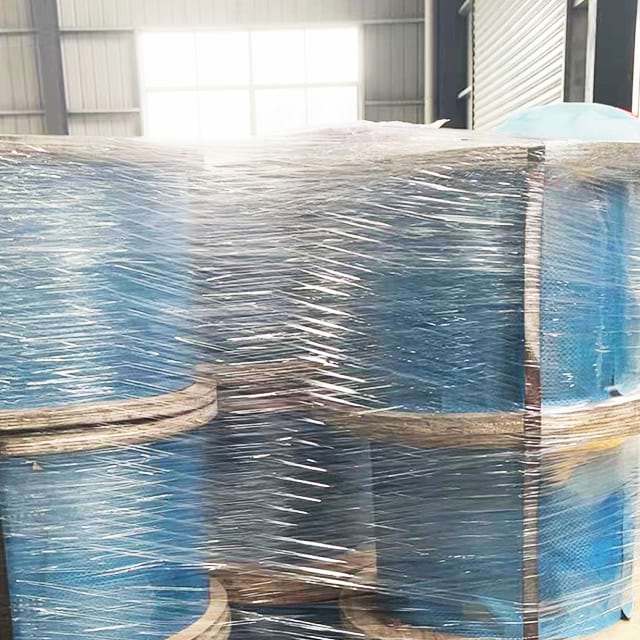

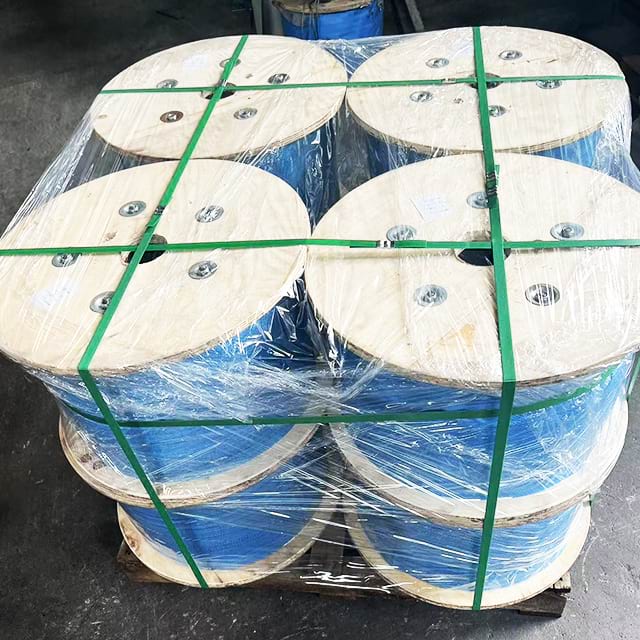

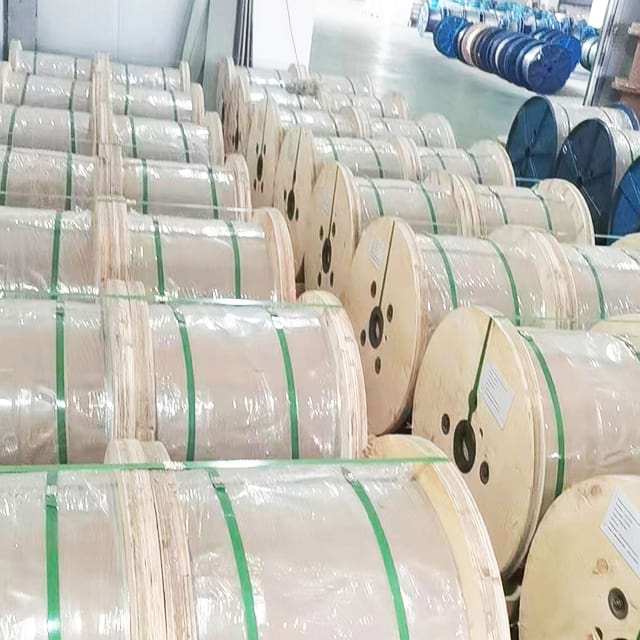

4-Packaging method:I-shaped wheel or parts
5-Precautions for use:During transportation, it should be handled with care to prevent impact damage to the outer packaging. It should be moisture-proof and strictly prohibited from rain. It should be stored in a dry and ventilated place. During use, the I-shaped wheel should be used to rewind and pay out, and pay attention to the pay-off direction to avoid additional damage. Stress; during on-site use, attention should be paid to the direction of the wire rope to avoid additional stress and bending of the wire rope.
Product Structure/ Product Structure
| structure | Nominal diameter | Minimum breaking force | Linear density |
| 1*7 | 1.20 | 1.43 | 0.71 |
| 1.40 | 16.17 | 0.98 | |
| 1.60 | 2.37 | 1.25 | |
| 1.80 | 3.04 | 1.60 | |
| 2.00 | 3.79 | 2.00 | |
| 2.30 | 5.00 | 2.64 | |
| 2.60 | 6.01 | 3.36 | |
| 3.00 | 7.99 | 4.45 | |
| 1*19 | 1.50 | 2.13 | 1.08 |
| 1.80 | 3.07 | 1.56 | |
| 2.20 | 4.60 | 2.34 | |
| 2.50 | 5.94 | 3.02 | |
| 3.00 | 8.07 | 4.34 | |
| 3.35 | 10.97 | 5.91 |
Note: Products with other specifications and tensile strengths can also be provided according to customer needs.
Guy strands
1-Use:Used as reinforcement and tensioning material for fiber optic cables, electrical cables and overhead ground wires
2-Features:Good linearity; small diameter tolerance, soft; according to GB, can also be produced according to customer's technical requirements
3-Surface condition:galvanized
4-Packaging method:I-shaped wheel or parts
5-Precautions for use:During transportation, it should be handled with care to prevent impact damage to the outer packaging. It should be moisture-proof and strictly prohibited from rain. It should be stored in a dry and ventilated place. During use, the I-shaped wheel should be used to rewind and pay out, and pay attention to the pay-off direction to avoid additional damage. Stress; during on-site use, attention should be paid to the direction of the wire rope to avoid additional stress and bending of the wire rope.
Product Structure/ Product Structure
| structure | Nominal diameter | Minimum breaking force | Linear density |
| 1*7 | 1.20 | 1.43 | 0.71 |
| 1.40 | 16.17 | 0.98 | |
| 1.60 | 2.37 | 1.25 | |
| 1.80 | 3.04 | 1.60 | |
| 2.00 | 3.79 | 2.00 | |
| 2.30 | 5.00 | 2.64 | |
| 2.60 | 6.01 | 3.36 | |
| 3.00 | 7.99 | 4.45 | |
| 1*19 | 1.50 | 2.13 | 1.08 |
| 1.80 | 3.07 | 1.56 | |
| 2.20 | 4.60 | 2.34 | |
| 2.50 | 5.94 | 3.02 | |
| 3.00 | 8.07 | 4.34 | |
| 3.35 | 10.97 | 5.91 |
Note: Products with other specifications and tensile strengths can also be provided according to customer needs.
