Micro rope specification series:
Micro rope specification series:

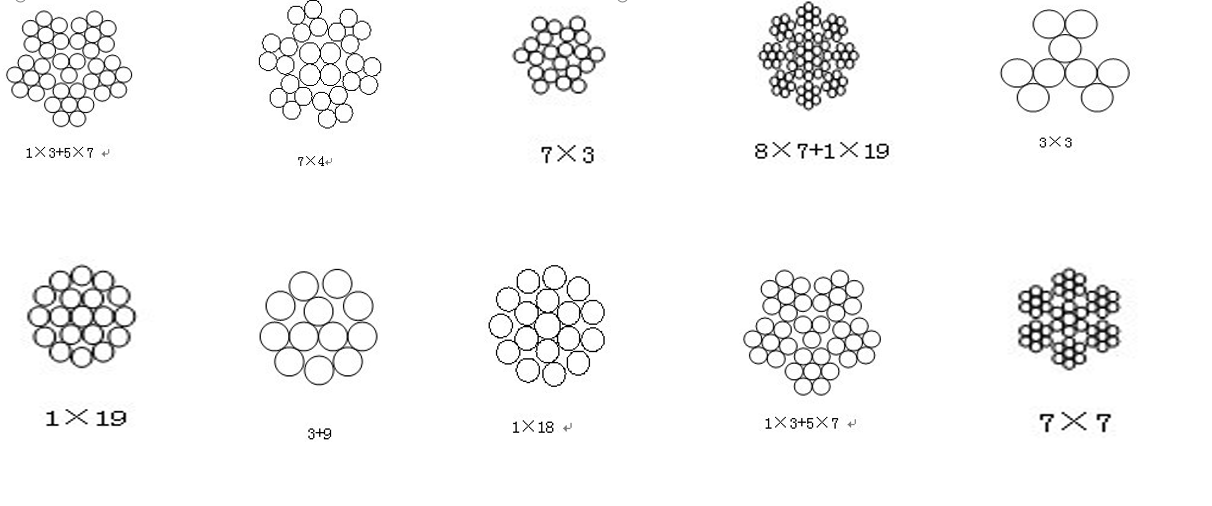

Current main production specifications:
3*3-0.32 3*3-0.41 3*3-0.51 3*3-0.63
1*3+5*7-0.97 1*3+5*7-1.21
7*3-0.60 7*3-0.91
7*7-1.62 7*7-2.0
1*19-0.60 1*19-0.63
1*18-0.63
3+9-0.63
7*4-0.86
8*7+1*19-2.12
Micro rope features:
Ultra-fine structural specifications (the thinnest rope-making steel wire is only 0.04mm);
High surface cleaning requirements; high adhesion to PU materials;
High-pass performance; high twist quality;
Low twisting stress; low rotation number and low elongation.
The three main indicators of the micro rope controlled by the operator on site: number of revolutions (≤3 revolutions), surface cleanliness, and diameter
Production process flow of main products:
Raw steel wire → Heat treatment → Electro-galvanizing → TB4 wire drawing → Twisting → Roping → Ultrasonic cleaning (coating with adhesive) → Inspection → Packaging → Warehousing
Main testing and production equipment:
serial number | Device name | Device model | quantity | Manufacturer | Date of manufacture | Accuracy level |
1 | Straight forward wire drawing unit | FX630+LZ11/300+SG760(630) | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.1 | |
2 | Straight forward wire drawing unit | LZ9/600+SG660 | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.1 | |
3 | Straight forward wire drawing unit | FX630+LZ9/400+SG630 | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.1 | |
4 | Water tank drawing car | Lt160-21-277 | 30 | Jiangsu Jintailong Mechanical and Electrical Equipment Manufacturing Factory | 2011.3 | |
5 | twisting machine | DN | 6 | Jiangsu Jintailong Mechanical and Electrical Equipment Manufacturing Factory | 2011.3 | |
6 | Tubular high-speed twisting machine | BET-3/165 | 32 | Yangzhou Belt Machinery Co., Ltd. | 2011.3 | |
7 | Tubular high-speed twisting machine | BET-6/165 | 38 | Yangzhou Belt Machinery Co., Ltd. | 2011.3 | |
8 | Tubular high-speed rope closing machine | BET-12/165 | 2 | Yangzhou Belte Machinery Co., Ltd. | 2011.3 | |
9 | Retracting and unwinding line heat treatment unit | 20 heads FX63.+SS650 head FX63.+SS650 | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.1 | |
10 | Anti-aircraft gun wire straight wire drawing machine | +L29/600+SGB30 L29/600 | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.1 | |
Anti-aircraft gun wire straight wire drawing machine | +L29/400+SGB30 L29/400 | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.1 | ||
Drawing unit | LZ11/300 | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.3 | ||
Rewinding machine | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.3 | |||
Splitting rack | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.3 | |||
Electric muffle furnace | 1 | Wuxi Tongcheng Industrial Kiln Co., Ltd. | 2011.2 | |||
water bath furnace | 1 | Wuxi Tongcheng Industrial Kiln Co., Ltd. | 2011.2 | |||
24-head retracting and unwinding equipment | 1 | Jiangyin Sanheng Machinery Co., Ltd. | 2011.2 | |||
Computerized servo tensile testing machine | HY-932CS 20KN | 1 | Shanghai Hengyu Instrument Co., Ltd. | 2011.3 | 1 | |
Steel wire repeated bending testing machine | XW-3 | 1 | Suning Testing Machine Accessories Factory | 2011.3 | 2ff | |
Wire torsion testing machine | XNZ-3 | 1 | Zhengzhou Yuanxiang Industrial Company | 2011.3 | 2ff | |
Salt water spray test chamber | HY-952C | 1 | Shanghai Hengyu Instrument Co., Ltd. | 2011.3 | ||
Wire rope bending fatigue testing machine | PLG-200C | 1 | self made | 2011.5 | 120 times/minute/minute | |
Analytical electronic balance | FA2004 200g | 1 | Shanghai Liangping Instrument Co., Ltd. | 2010.8 | ||
Vernier caliper with watch | 0-150mm | 1 | Guilin Measuring Tools and Cutting Tools Co., Ltd. | 2011.1 | 0.02mm | |
micrometer | 0-25mm | 1 | Dafengliang Cutting Tool Factory | 2011.6 | 0.01mm | |
Steel wire tensile testing machine | HY-980A 500N | 1 | Hengyu Instrument Co., Ltd. | 2007.5 | Graduation value 2N2N | |
Resistance meter | ZY9734-1 | 1 | Shanghai Zhengyang Instrument Factory | 2011.9 |
